SMZH-280 Pillow packaging machine (Film from back)
- More suitable for heavy weight,high viscosity, pieces packaging , such as: bun, preserved fruit, etc. Packaging film conveying together with materials , overcome high viscosity, the problem of heavy weight. Double frequency conversion structure, bag len
- Tel：+86 15721208277
-
Content
|
SMZH-280 Pillow packaging machine (Film from back) |
Price: (Standard configuration)
Standard Fob Shanghai Port price: *****USD
Control system: double frequency conversion structure

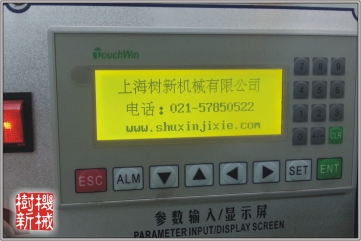

Interface：light touch screen
Spare parts: the present one
Attachment: giving code printer
Warranty: 1year
After sale service: Free training, free installing, free spare parts
Payment: TT, 50% for deposit, balance after machine finished.
Shipping: Standard sea wooden case
Special need: OEM is ok
Features
Dual frequency conversion control, bag length is immediate setting and cutting , the mechanical structure is simple, operation reliable , easy maintenance.
Man-machine interface, parameters settingconvenient and quick , cutter location, the cursor position all can realize the digital input
Positioned stop function, non-stick knives, do not waste packaging film
Independent temperature control, suitable for a variety of packaging film
Overhead center sealer prevents heat damage
Parameters
Model SMZH-280
Film width 280mm
bag length 70-150mm
Product width 30-90mm
product height 1-35mm
film roll diameter <300mm
packing speed 10-220bag/min
Power 220V/3KW
weight 400KG
L 3000mm
W 900mm
H 1160mm
Sample Related
No samples
Photos Related
Knowledge Related
This machine is specially
designed for packing steam burns, sweetmeat and other similar soft and high
sticky products, products can be put on
the film directly, so it can solve the sticky problem, it is also can pack
multi-units product. At present, we have many customers using this machine.
Please contact our technicians for details: phone: 40001-42221( Steam buns packing machine, sweetmeat packing machine, back film
packing machine, red dates packing machine.)
Company introduction
Shanghai SHUXIN Machinery Co., Ltd main products: Food machines, packing machines, transfer machines and other nonstandard machines. Food machines include: sunflower seed candy equipment, puffed rice candy equipment, peanut candy equipment, sticky candy equipment, nougat equipment, sesame candy equipment, From the establishing year 2007, our company already has more than thousand customers both here and abroad, more than 3000 sets machines have been sold, with a lot of high opinion.
Company has develop producing equipment, high level service party, and powerful developing capacity. Now, we have many new technologies which are leading this industry's development, and we have the patents.
Company will focus on products' quality and after sale service more to become a model of mechanical industry.
The introduction on the web can't fully show our capacity, we sincerely invite you to come to visit and advise our company.
